1. Understanding Nioikuchi in Japanese Swords
1.1 What is Nioikuchi: Definition and Significance
In the intricate world of Japanese swords, the nioikuchi stands as a critical element, representing the very essence of the blade's differential hardening. At its core, the nioikuchi is the visible border line that delineates the hardened cutting edge, known as the yakiba, from the softer, unhardened body of the blade, referred to as the ji or hada. It is not merely a decorative feature but the tangible manifestation of the swordsmith's mastery over metallurgy and heat treatment.

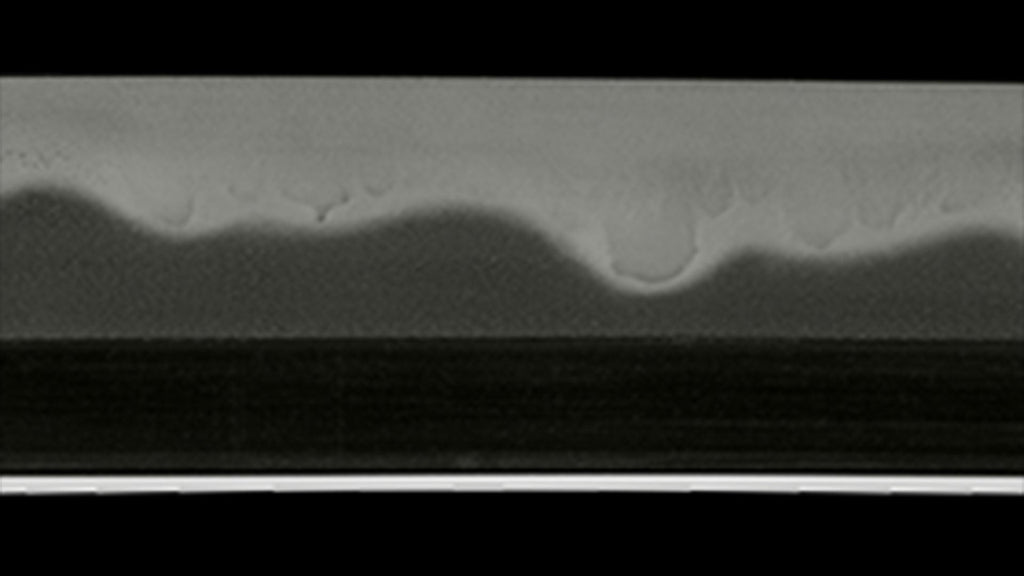

Visually, the nioikuchi typically presents as a misty, cloudy, or smoky line, often possessing a translucent or luminous quality. Its appearance can vary significantly, from a narrow, tightly defined border to a broad, diffused band, each characteristic contributing to the unique personality of a Japanese sword. This delicate line is formed during the quenching process when the steel is rapidly cooled, transforming the high-temperature austenite into martensite, a very hard crystalline structure, along the edge.
The significance of a well-executed nioikuchi extends across several crucial aspects of Japanese sword appreciation:
- Aesthetic Value: The nioikuchi is a primary contributor to the sword's artistic beauty. Its subtle yet profound visual appeal, often shimmering under light, enhances the overall elegance and mystique of the hamon (temper line). The interplay of light and shadow on the nioikuchi creates a dynamic visual experience that captivates collectors and enthusiasts.
- Craftsmanship Indicator: The clarity, consistency, and specific characteristics of the nioikuchi are direct reflections of the swordsmith's (tosho) skill. Achieving a desirable nioikuchi requires precise control over clay application (tsuchioki), forging, and the exact temperature and timing of the quenching process. It serves as a signature of the smith's technical prowess and artistic intent.
- Appraisal and Authenticity (Kantei): For experts in sword appraisal (kantei), the nioikuchi is an indispensable diagnostic feature. Its particular traits—such as width, texture, and the types of crystals that compose it—can help identify the school, period, and even the individual swordsmith responsible for the blade. It provides vital clues to the sword's provenance and historical context.
- Functional Implication: Beyond its aesthetic and appraisal roles, the nioikuchi indicates the successful differential hardening of the blade. This process creates a resilient, shock-absorbing spine while maintaining an incredibly sharp and durable edge, a hallmark of Japanese sword functionality. A well-defined nioikuchi is therefore a testament to the blade's intended performance.
1.2 Nioikuchi Versus Nioi and Nie: Clarifying the Terminology
The terminology surrounding the Japanese sword's temper line can often be a source of confusion, particularly when distinguishing between nioikuchi, nioi, and nie. While these terms are closely related and describe aspects of the same phenomenon, they refer to distinct elements of the hamon structure. Understanding their precise definitions is fundamental for any serious study or appreciation of Japanese swords.
The nioikuchi is the overall boundary line of the hamon, the structure itself. It is the visible separation. Nioi and nie, however, are the individual crystalline particles that *compose* this line, each with a unique appearance and size. Both nioi and nie are forms of martensite crystals, but their distinction lies in their size and how they are perceived by the naked eye.
| Term | Definition | Appearance | Composition |
|---|---|---|---|
| Nioikuchi | The visible border line separating the hardened edge (yakiba) from the softer body (ji) of a Japanese sword blade. It is the overall structure of the hamon's boundary. | Often described as a misty, cloud-like, or smoky line, varying in clarity and width. | Formed by a concentration of martensitic crystals, specifically nioi and/or nie. |
| Nioi | Extremely fine, indistinguishable martensitic crystals that appear as a continuous, bright, mist-like line to the naked eye. | A soft, diffused, and lustrous haze, often compared to a distant cloud or mist. | Microscopic martensite crystals, too small to be seen individually. |
| Nie | Larger, individually discernible martensitic crystals that appear as bright, glittering specks or dots along the hamon. | Sharp, distinct, and sparkling particles, often likened to stars scattered across the hamon. | Visible martensite crystals, larger than nioi. |
In essence, the nioikuchi is the canvas, while nioi and nie are the pigments that give it texture and luminosity. A hamon can be predominantly composed of nioi, known as nioi-deki, resulting in a softer, more diffused appearance. Conversely, a hamon primarily formed by nie is termed nie-deki, characterized by a more crystalline, sparkling quality. Many historical swords, particularly from the Soshu tradition, are renowned for their prominent nie, while the Bizen tradition is often associated with exquisite nioi-deki hamon.
The skillful manipulation of these crystalline structures through controlled heat treatment allows swordsmiths to create an astonishing variety of hamon patterns, each with its own unique nioikuchi, contributing significantly to the historical and artistic narrative of Japanese sword making.
2. The Craft Behind the Nioikuchi Formation Process
The mesmerizing beauty of a Japanese sword's nioikuchi is not merely an aesthetic choice but the direct result of a meticulous and highly skilled forging and heat-treatment process. This chapter delves into the intricate metallurgical and artisan techniques that transform raw steel into a blade exhibiting this distinctive visual phenomenon.
2.1 Metallurgy and Heat Treatment: The Art of Tempering a Japanese Sword
The foundation of the nioikuchi begins with the selection of high-carbon steel, traditionally tamahagane, a steel smelted from iron sand using ancient Japanese methods. This steel is repeatedly folded and hammered to remove impurities and homogenize the carbon content, creating a layered structure that contributes to the blade's strength and resilience.
The critical stage for nioikuchi formation is the yaki-ire, or differential heat treatment (quenching). After the blade is shaped, it is heated to a precise temperature, typically around 750-800°C, where the steel's crystalline structure transforms into austenite. The blade is then rapidly cooled by plunging it into a quenching medium, usually water. However, the cooling rate is intentionally varied across the blade's surface, which is where the nioikuchi truly takes shape.
The rapid cooling of the edge (ha) causes the austenite to transform into martensite, a very hard and brittle microstructure. In contrast, the spine (mune) cools more slowly, allowing the austenite to transform into pearlite, a tougher and more flexible microstructure. The boundary between these two microstructures, formed during this differential quenching, is what we observe as the hamon, and specifically, the nioikuchi.
The precise control over temperature, timing, and the quenching medium's characteristics are paramount. Variations in these parameters directly influence the size, density, and distribution of the martensitic crystals (nie and nioi) that constitute the nioikuchi, dictating its overall appearance and character.
2.2 The Role of Clay Application in Nioikuchi Creation
The ability to achieve differential hardening and, consequently, the nioikuchi, hinges on a technique known as tsuchioki, or clay application. Before the yaki-ire, the swordsmith meticulously applies a special clay mixture to the blade. This clay serves as a thermal insulator, controlling the rate at which different parts of the steel cool during quenching.
The process involves:
- Thick Clay on the Spine (Mune): A thick layer of clay is applied along the spine of the blade. This insulation slows down the cooling process significantly, preventing the steel in this area from hardening fully and thus forming softer pearlite.
- Thin Clay or No Clay on the Edge (Ha): The cutting edge receives a very thin layer of clay, or sometimes none at all. This allows for rapid cooling during quenching, leading to the formation of hard martensite.
- The Hamon Line Pattern: The most crucial aspect for the nioikuchi is the intricate pattern in which the clay is applied along the transition zone between the spine and the edge. The skilled swordsmith carefully scrapes away or applies clay in specific designs, creating the desired shape for the hamon. The exact line where the thick clay meets the thin clay (or no clay) is where the nioikuchi will form.
During the quench, the areas covered by thick clay cool slowly, while the areas with thin or no clay cool rapidly. The boundary where these differential cooling rates meet creates immense stress within the steel, causing the blade to curve (sori) and forming the distinct temper line (yakiba), of which the nioikuchi is the visual manifestation. The following table summarizes the effect of clay application:
| Blade Area | Clay Application | Cooling Rate During Quench | Resulting Microstructure | Impact on Nioikuchi/Hamon |
|---|---|---|---|---|
| Cutting Edge (Ha) | Thin or None | Rapid | Hard Martensite | Forms the bright, crystalline structure of the hamon, including nie and nioi. |
| Spine (Mune) | Thick | Slow | Softer Pearlite | Remains relatively soft and flexible, providing resilience and shock absorption. |
| Boundary/Transition Zone | Precisely patterned | Differential (Gradual to Rapid) | Mixed/Transitional | Defines the visible line and characteristics of the nioikuchi, dictating its width, clarity, and specific patterns (e.g., sugaha, gunome, notare). |
The artistry in tsuchioki is not just about drawing a line; it's about understanding how the clay's thickness and composition will interact with the steel and the quenching medium to produce the desired crystalline structures and visual effects. This mastery is what allows swordsmiths to create the vast array of nioikuchi types, each with its unique beauty and technical complexity.
3. Exploring Diverse Nioikuchi Types and Characteristics
| Variation Type | Description | Key Characteristics |
|---|---|---|
| Nie-deki Nioikuchi | A nioikuchi prominently composed of **visible, individual martensite crystals (nie)**, making the boundary sparkle. | **Clear, sparkling, jewel-like** appearance; often associated with a strong, active hamon. The individual nie crystals are discernable to the naked eye. |
| Nioi-deki Nioikuchi | A nioikuchi primarily formed from **microscopic martensite crystals (nioi)**, creating a softer, more diffused boundary. | **Misty, cloud-like, or hazy** appearance; the boundary is smooth and continuous, lacking the individual sparkle of nie. |
| Kuzure Nioikuchi | A nioikuchi that appears **intentionally broken, fragmented, or irregular** along its length, creating unique patterns. | **Discontinuous, textured, sometimes resembling crumbling ice**. Can add an element of raw artistry or a unique visual texture to the hamon. |
| Utsuri-gokoro Nioikuchi | A nioikuchi that exhibits a **subtle, shadow-like quality**, sometimes appearing as if a faint reflection of the hamon. | **Ghostly, indistinct, or slightly blurred**, often lending a profound depth and ethereal quality to the blade's surface. This can sometimes be confused with true utsuri. |
| Kinsuji and Inazuma (Activities within Nioikuchi) | While not types of nioikuchi themselves, these are **striking features often observed within or along the nioikuchi**. Kinsuji are bright, golden streaks of nie; Inazuma are lightning-like, angular lines of nie. | **Bright, linear, or zigzagging formations of large nie crystals**. They indicate a highly active and complex martensitic transformation, greatly enhancing the aesthetic value and demonstrating superior smithing skill. |
4. Identifying Nioikuchi on Your Japanese Sword Hamon
4.1 Tools and Techniques for Nioikuchi Observation
Proper illumination is paramount when examining the *nioikuchi*. Natural, diffused light is often preferred, as it minimizes harsh reflections that can hide the delicate crystalline structure. When natural light is unavailable, a high-quality LED light source, preferably one that emits a broad spectrum of light, can be used. The key is to direct the light at various angles across the blade's surface, allowing the *nioikuchi* to catch the light and reveal its texture and composition.
Magnification is indispensable for discerning the individual *nie* and *nioi* particles that constitute the *nioikuchi*. A jeweler's loupe, typically 10x to 20x magnification, is a standard tool for collectors. For more in-depth study, a low-power microscope can provide even greater clarity, allowing for the observation of the minute differences between *nie* (larger, brighter martensite crystals) and *nioi* (smaller, more diffused crystals forming a cloud-like effect).
The method of holding and rotating the sword is also critical. The blade should be held so that the light source reflects off the *hamon* area at an oblique angle. Slowly rotating the blade allows the observer to catch the glint of the *nie* particles and the subtle sheen of the *nioi* boundary as they interact with the light. This dynamic observation is essential for understanding the three-dimensional quality of the *nioikuchi* and its relationship to the *ji* (blade surface) and the hardened edge.
The quality of the blade's polish plays an enormous role in *nioikuchi* visibility. A traditional Japanese sword polish, executed by a skilled *togishi*, is designed to reveal all the intricate features of the blade, including the *nioikuchi*, *nie*, *nioi*, *hada* (grain pattern), and *utsuri* (reflection of the *hamon* in the *ji*). A poor or incomplete polish can obscure these features, making accurate identification nearly impossible.
To summarize the essential tools and techniques:
| Aspect | Description | Purpose for Nioikuchi Observation |
|---|---|---|
| Lighting | Natural, diffused light or broad-spectrum LED. | Reveals subtle crystalline structures and avoids harsh reflections. |
| Magnification | 10x-20x jeweler's loupe, low-power microscope. | Allows for close examination of individual *nie* and *nioi* particles. |
| Viewing Angle | Oblique angles, slow rotation of the blade. | Catches the glint and sheen, highlighting the three-dimensional nature. |
| Blade Polish | Traditional *togishi* polish. | Optimizes visibility of all blade features, including *nioikuchi*. |
| Background | Plain, dark background (e.g., black cloth). | Reduces distractions and enhances contrast. |
4.2 Common Pitfalls in Nioikuchi Identification
One of the most frequent errors is insufficient or improper lighting. Harsh, direct light can create reflections that mimic the appearance of *nie* or *nioi*, leading to false identification. Conversely, inadequate light will simply obscure the delicate features entirely. It's crucial to experiment with light sources and angles until the *nioikuchi* clearly stands out from the surrounding *ji*.
Another significant pitfall is relying solely on photographs. While high-quality images can be helpful, they often fail to capture the dynamic, three-dimensional nature of the *nioikuchi*. The way light plays across the blade, revealing the depth and texture of the *nie* and *nioi*, is best experienced firsthand. Photographs can flatten these nuances, making subtle distinctions difficult to perceive.
Confusion between *nioi* and *nie*, and their combined manifestation as *nioikuchi*, is common. Remember that *nioikuchi* refers to the *borderline* itself, which can be formed primarily by *nioi* (a diffused, cloud-like line) or by *nie* (distinct, bright grains), or a combination. Mistaking superficial scratches or wear marks for legitimate *nie* can also lead to incorrect conclusions about the blade's quality or smith.
Furthermore, the condition of the blade's polish can be a major impediment. A blade with a poor, old, or amateur polish will not fully reveal its *nioikuchi*. The surface might be dull, scratched, or improperly prepared, making it impossible to observe the subtle crystalline structures. In such cases, professional repolishing by a qualified *togishi* is often necessary to bring out the blade's true characteristics.
Finally, inexperience and lack of comparative study can lead to misidentification. The ability to accurately discern different *nioikuchi* types (e.g., *hosho*, *atsu*) comes with extensive practice and by examining numerous authentic Japanese swords. Comparing blades from different periods and smiths helps to build an internal library of what various *nioikuchi* should look like, allowing for more confident identification.
To avoid these pitfalls, always strive for optimal viewing conditions, use appropriate magnification, understand the terminology, and seek opportunities to examine a wide range of traditionally polished Japanese swords.
5. Nioikuchi and Its Impact on Japanese Sword Appreciation
5.1 Historical Context and Famous Swordsmiths Known for Nioikuchi
| Tradition/School | Period | Characteristic Nioikuchi | Notable Smiths |
|---|---|---|---|
| Soshu Tradition | Koto (Kamakura-Nanbokucho) | Dynamic, often broad *nioikuchi* with rich *nie* (martensite crystals), dramatic and powerful. | Masamune, Shizu Kaneuji, Sadamune |
| Bizen Tradition | Koto (Kamakura-Muromachi) | Refined *nioi* (fine martensite particles) base, often in *choji* or *gunome* patterns, elegant and consistent. | Nagamitsu, Sukesada, Osafune Kunimitsu |
| Yamashiro Tradition | Koto (Heian-Muromachi) | Subtle, delicate *suguha* (straight) *hamon* with a clear, pure *nioikuchi*. | Rai Kunitoshi, Awataguchi Yoshimitsu |
| Mino Tradition | Koto-Shinto (Muromachi-Edo) | Often *togari-ba* (pointed *gunome*) or *sanbon-sugi* (three cedars) patterns, featuring distinct *nioikuchi* with *nie*. | Kanemoto, Kanesada |
6. Conclusion
The nioikuchi stands as a paramount feature in the intricate world of Japanese swords, serving as a captivating testament to the swordsmith's mastery and the blade's inherent quality. Far more than just a line, it is the distinct, luminous boundary of the hamon – the tempered edge – revealing the soul of the katana or other traditional Japanese blades.
Throughout this guide, we've journeyed from its fundamental definition, distinguishing it clearly from the individual nie and nioi particles that compose it, to the profound craftsmanship involved in its creation. The delicate interplay of metallurgy, precise clay application (yakiba), and controlled heat treatment culminates in this critical demarcation. Whether it manifests as a Hosho nioikuchi with its narrow, sharp definition or an Atsu nioikuchi exhibiting a broader, more robust appearance, each variation speaks volumes about the smith's technique and artistic intent.
The ability to observe and interpret the nioikuchi is a cornerstone of kantei (sword appraisal and authentication). It provides invaluable clues about the blade's provenance, helping to identify the school, era (such as Koto, Shinto, or Shinshinto), and even the specific hand of renowned swordsmiths whose legacies are often defined by their distinctive hamon and nioikuchi. From the powerful Soshu tradition to the elegant Bizen works, the character of the nioikuchi is a signature element that connoisseurs meticulously study.
Ultimately, the nioikuchi elevates the Japanese sword from a mere weapon to a profound work of art. Its subtle beauty, observable through careful study, enhances the aesthetic appeal of the entire blade, complementing the jihada (grain pattern) and the boshi (hamon in the kissaki). Understanding and appreciating this phenomenon allows collectors, enthusiasts, and scholars to delve deeper into the rich history and unparalleled artistry embedded within each blade.
To summarize the multifaceted importance of nioikuchi:
| Aspect of Nioikuchi | Significance in Japanese Sword Appreciation |
|---|---|
| Fundamental Definition | The essential boundary of the hamon, critical for understanding the blade's tempering process and structural integrity. |
| Craftsmanship & Formation | A direct reflection of the swordsmith's unparalleled skill in metallurgy, precise clay application (yakiba), and intricate heat treatment, showcasing technical prowess. |
| Typological Diversity | Specific forms (e.g., Hosho, Atsu) are indicative of different sword schools, historical periods, and individual smiths, aiding significantly in classification and historical context. |
| Aesthetic Contribution | Significantly enhances the visual beauty and artistic merit of the blade, acting as a primary focal point and contributing to the overall harmony of the hamon and jihada. |
| Authentication (Kantei) | A primary characteristic meticulously used by experts for identifying the smith, school, and era of a Japanese sword, proving crucial for provenance and historical validation. |
The study of nioikuchi is an ongoing journey, revealing new layers of appreciation with every observation. It reinforces the notion that each Japanese sword is a unique masterpiece, with its nioikuchi telling a silent, yet powerful, story of its creation and heritage, inviting continuous admiration and scholarly pursuit.
