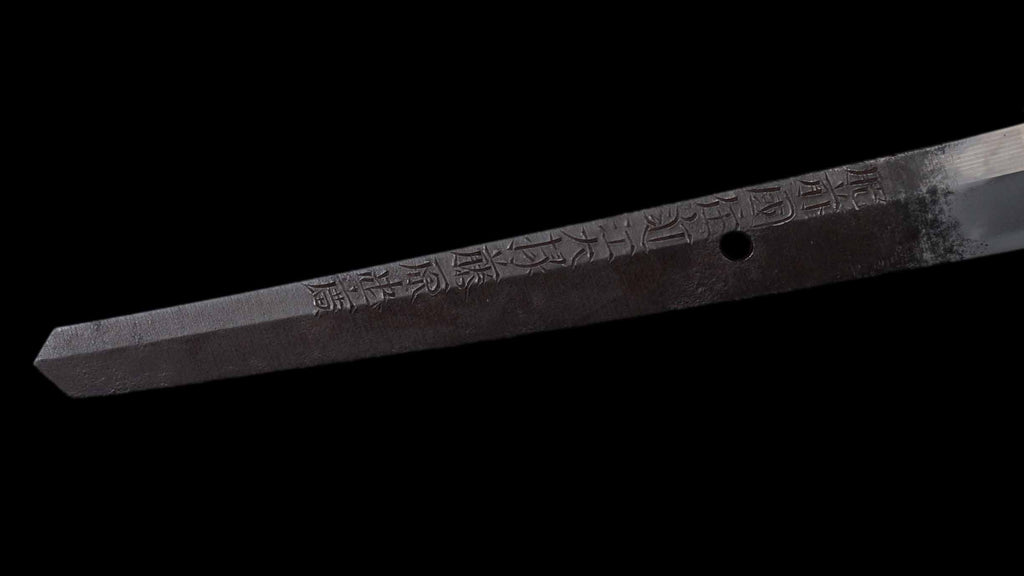

When you draw a Japanese sword from its scabbard, what you see is the blade — the polished steel surface, the hamon, the sugata. What you do not see is hidden inside the handle: a length of unpolished, unadorned steel called the nakago (茎), the tang. It is invisible in normal use. It is never on display. And it is, in the judgment of every serious appraiser of nihonto, the single most reliable source of information about what a sword actually is, when it was made, who made it, and whether what you are being told about it is true. This article explains why — and what the nakago reveals to anyone who learns to read it.
What the Nakago Is — and Why It Is Left Unpolished
The nakago is the extension of the blade that fits inside the tsuka (handle). It is secured there by one or two bamboo pegs (mekugi) passing through holes in both the handle and the tang. When you disassemble a Japanese sword for maintenance — removing the handle by tapping the end of the tsuka — the nakago is what is revealed: a length of steel that has never been polished, whose surface carries the file marks left by the smith, whose tip shows the specific shape characteristic of the sword's school and period, and whose face bears — or does not bear — the smith's signature.
The reason the nakago is left unpolished is functional: the rough, filed surface provides grip within the handle, preventing the blade from rotating. But the consequence of this is profound. While the blade's polished surface can be re-polished — removing surface rust, revealing the hamon more clearly, sometimes altering the blade's apparent character — the nakago cannot be touched without destroying the very evidence it carries. The patina that has developed over centuries of oxidation, the file marks left by the smith's hand, the precise shape of the tang tip — all of these are irreversible. They are, for this reason, the most reliable physical evidence a sword possesses.
Three Things the Nakago Reveals — That Nothing Else Can
The nakago-sabi — the patina that develops on the unpolished tang surface — is the most reliable single indicator of a sword's genuine age. Steel that has been oxidising for two hundred years develops a specific depth, colour, and texture of rust that is fundamentally different from steel that was exposed to air last year. The colour shifts from reddish-brown in younger blades toward a deeper, almost blackish brown in very old ones. The texture becomes finer and more integrated with the steel's surface. The patina settles into the file marks rather than sitting on top of them.
No forger has yet produced a convincing simulation of centuries-old nakago-sabi. Chemical treatments can darken steel quickly, but the result is visually and texturally wrong to an experienced eye — the colour is too uniform, the depth is wrong, the relationship between the patina and the file marks is different. The nakago-sabi is, in this sense, the sword's built-in age certificate — one that requires no issuing body and cannot be falsified.
The yasurime are the file marks left on the nakago surface when the smith shaped it after forging. Different schools used different filing patterns — the angle, direction, and depth of the marks varied systematically across the major traditions and periods. These patterns were not purely aesthetic choices; they were part of each school's transmitted technique, as characteristic as the school's jihada or hamon preferences.
| Pattern | Japanese | Character | Association |
|---|---|---|---|
| Kiri | 切 | Horizontal — perpendicular to the blade's length | Many schools; common in Yamato-den |
| Sujikai | 筋違 | Diagonal — angled across the nakago | Bizen-den; many Kamakura-period blades |
| Ōsujikai | 大筋違 | Steep diagonal — more pronounced angle | Sōshū-den; associated with Masamune school |
| Katte-sagari | 勝手下がり | Diagonal slanting toward the edge | Shintō period; many Edo-era schools |
| Higaki | 檜垣 | Crossed diagonal — lattice pattern | Specific Shintō-period schools |
| Sensuki | 千筋 | Very fine parallel lines | High-quality Shintō work; Edo period |
In kantei — the appraisal practice of attributing a blade from its physical evidence — the yasurime are examined alongside the jihada and hamon as one of the primary diagnostic indicators. A filing pattern inconsistent with the claimed period or school is significant evidence against the attribution.
The shape of the nakago's tip — the nakago-jiri — is one of the most reliable period indicators available in nihonto appraisal. Different periods and schools developed characteristic tip shapes that were transmitted within each tradition and changed systematically over time. Common forms include kurijiri (rounded, chestnut-shaped — common in Kamakura and Nanbokuchō work), kengyo (pointed, like an inverted V — characteristic of certain Sōshū and Yamato schools), iriyamagata (notched V-shape), and haagari (the edge side rises — seen in certain Muromachi and Shintō period work).
A nakago-jiri shape inconsistent with the claimed period is one of the fastest ways an experienced appraiser identifies a problematic attribution. These shapes were not random — they followed the same school-specific transmission as every other element of the smith's technique. Learning to recognise them is one of the foundational skills of serious nihonto study.
Mei, Mumei, and Gimei — The Three Categories of Signature
The nakago is where the swordsmith inscribed their name — if they chose to do so. The relationship between signature and value in nihonto is one of the most misunderstood aspects of the tradition, and understanding it begins with the three categories of signed status.
The swordsmith's inscription on the nakago — typically name, province, date, and sometimes the name of the commissioned owner. A genuine mei by a recognised smith adds significant attribution certainty and, usually, market value. However, the presence of a mei is not proof of authenticity — signatures can be faked (gimei). The mei must be consistent with the blade's physical evidence to be credible.
A blade without a smith's inscription. Mumei status has many legitimate origins: the blade was shortened (suriage/ōsuriage), removing the signed portion; the smith chose not to sign certain commissions; the blade predates the practice of signing; or the signature has worn away over centuries. Many of Japan's most celebrated historical blades — including works by Masamune and Gō no Yoshihiro — are mumei. Absence of signature is not evidence of lesser quality.
A false or added signature — a genuine blade with an inscription added after the fact, typically to attribute it to a more famous smith and increase its value. Gimei has been practised since the Muromachi period. It is the primary form of fraud in the historic nihonto market. A gimei blade is a genuine sword — but its claimed attribution is false, and its market value reflects the actual smith's work, not the inscribed name. Detecting gimei requires specialist examination of the nakago itself.
But the nakago cannot be touched without destroying
the evidence it carries. It is the sword's most honest record."
Ubu and Suriage — When the Nakago Has Been Shortened
One of the most important things the nakago reveals is whether it is in its original condition (ubu) or has been shortened (suriage). This distinction matters enormously for both authenticity assessment and understanding a blade's history.
Ubu (生ぶ) — the nakago is in its original, unaltered condition as left by the swordsmith. An ubu nakago carries the original file marks, the original tip shape, and — if the blade was signed — the original mei. An ubu blade has lost none of its physical evidence. For attribution purposes, an ubu nakago is the most informative possible state.
Suriage (磨上げ) — the nakago has been shortened, typically because the blade was remounted in a shorter handle style at some point in its history. The most common reason was the transition from the long-handled tachi style (worn edge-down from the belt) to the shorter katana style (worn edge-up through the belt) that became standard from the late Muromachi period. Suriage removes the lower portion of the original nakago — and with it, in many cases, the smith's signature, the original tip shape, and some of the original file marks.
Ōsuriage (大磨上げ) — extensive shortening, typically leaving only a fraction of the original nakago. Most ōsuriage blades are mumei as a direct result of the shortening having removed the signed portion. This is one of the most common legitimate reasons for mumei status in antique blades — the signature was not absent from the original work; it was present on the portion that was later removed.
the nakago is what speaks
The belief that an uncertified Japanese sword is probably fake assumes that authenticity requires documentary proof. The nakago demonstrates why that assumption is wrong. A nakago with centuries-old patina of the correct colour and texture, file marks consistent with the claimed school and period, a tip shape appropriate to the claimed era, and a signature whose character is consistent with the blade's physical evidence — this nakago is its own authentication. It cannot be quickly faked. It cannot be added later. It is the direct physical record of what the sword is.
This is precisely why experienced Japanese sword appraisers — including the NBTHK's kantei specialists — examine the nakago as carefully as the blade when attributing unsigned or uncertified pieces. The nakago is not a secondary source of information. For attribution purposes, it is often the primary one. A blade whose nakago evidence is consistent, authentic, and period-appropriate is a blade whose authenticity is demonstrated by physical fact, whether or not a piece of paper confirms it.
For collectors encountering uncertified pieces from reputable dealers: ask to see photographs of the nakago. A dealer who cannot or will not provide clear nakago photographs is a dealer who has something to hide. A dealer who provides them, and who can explain what the nakago shows, is demonstrating the kind of specialist knowledge and transparency that genuine nihonto require.
How to Look at a Nakago — A Practical Guide
For collectors who are developing their eye, the nakago is the single best place to invest study time. The following sequence reflects the approach used in serious kantei practice.
First, look at the overall condition. Is the patina even and integrated, or does it show signs of having been disturbed? Are there areas of different colour that suggest partial cleaning? Is there evidence of added or artificial patination? The overall impression of the nakago's surface condition tells you immediately whether the evidence it carries is intact or compromised.
Second, assess the patina colour and depth. A reddish-brown, fine-grained patina with good depth suggests a blade of significant age. A coarser, lighter, or more superficial patina suggests either a younger blade or one whose nakago has been disturbed. Neither is automatically problematic — but the colour and depth should be consistent with the claimed period.
Third, examine the yasurime. What is the filing pattern — horizontal, diagonal, steeply diagonal, crossed? Does this pattern match what is expected for the claimed school and period? Are the file marks consistent in character across the nakago surface, or do some areas look different from others?
Fourth, look at the nakago-jiri. What is the tip shape, and is it consistent with the claimed period and school? A rounded (kurijiri) tip on a blade claimed to be Shintō period would be unusual; a sharply pointed (kengyo) tip on a blade claimed to be early Kamakura work would require explanation.
Fifth, if a mei is present, examine it carefully. Is the character of the inscription consistent with what is known of the claimed smith's signing style? Is the depth and freshness of the inscription consistent with the age of the surrounding patina? Does the patina settle naturally into the engraved characters? A gimei signature often shows as fresher than the surrounding patina — the engraving was made after the patina had already developed.
nakago and blade together
Tozando's descriptions of every blade in our collection include nakago condition, patina character, yasurime pattern, and mei status — because we know these are the details that matter most for informed collecting. Browse our collection, or contact our specialists to discuss the nakago evidence of any specific piece you are considering.
In Closing — The Part That Never Lies
Every other element of a Japanese sword can be altered after the fact. The blade can be re-polished, changing its surface appearance. The hamon can be made more or less visible by different polishing approaches. The koshirae can be replaced entirely. The signature on the nakago can even be added — which is why the signature alone is not sufficient authentication.
But the nakago's patina, in its depth and its colour and the way it settles into the file marks, is not something that can be replicated quickly or convincingly. The yasurime pattern, in its specific angle and character, reflects the transmitted technique of a specific school at a specific period — and a forger who gets it wrong gives themselves away immediately to anyone who knows what to look for. The tip shape, in its precise form, narrows the attribution field in ways that require specialist knowledge to understand but that are, once understood, remarkably reliable.
The nakago is hidden inside the handle for the entire working life of the sword. It is never on display. It is never polished. It is never shown to casual admirers. And it is, for precisely these reasons, the part of the sword that never lies — the physical record of what the blade actually is, written in rust and filing marks and the specific shape of a piece of steel, waiting for someone who knows how to read it.
Leave a comment:
